THE PHANTOM 4 PRO

An uprated camera is equipped with a 1-inch 20-megapixel sensor capable of shooting 4K/60fps video and Burst Mode stills at 14 fps. The adoption of titanium alloy and magnesium alloy construction increases the rigidity of the airframe and reduces weight, making the Phantom 4 Pro similar in weight to the Phantom 4. The FlightAutonomy system adds dual rear vision sensors and infrared sensing systems for a total of 5-direction of obstacle sensing and 4-direction of obstacle avoidance.

SPECIFICATIONS

AIRCRAFT:

WeigHT

Diagonal Size

Max Ascent Speed

Max Descent Speed

Max Speed

Max Tilt Angle

Max Angular Speed

Max Service Ceiling

Max Wind Speed

Max Flight Time

Operating Temperature

Satellite Positioning

Hover Accuracy Range

CAMERA:

Sensor

Effective pixelS

LensFOV

ISO RangE


Mechanical Shutter

Electronic Shutter

Max Video Bitrate

Supported File Systems


Video

Operating TemperaturE

Video Recording Modes

1388 g

350 mm

S-mode: 6 m/s P-mode: 5 m/s

S-mode: 4 m/s P-mode: 3 m/s

45 mph

42°

250°/s

l19685 feet

10 m/s

Approx. 30 minutes

32° to 104°F

GPS/GLONASS

Vertical: ±0.1 mHorizontal: ±0.3 m

1" cmos

20M

84° 8.8mm/24mm (35mm equivalent) f/2.8-f/11 focus at 1 m - ∞

100 - 3200 (Auto) 100 - 6400 (Manual)

100 - 3200 (Auto) 100- 12800 (Manual)

8 - 1/2000 s

8 - 1/8000 s

100 Mbps

FAT32 (≤32 GB); exFAT (>32 GB)

JPEG, DNG (RAW), JPEG + DNG

MP4/MOV (AVC/H.264; HEVC/H.265)

32° to 104°F

H.265
C4K:4096×2160 24/25/30p @100Mbps
4K:3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K:2720×1530 48/50/60p @80Mbps
FHD:1920×1080 24/25/30p @50Mbps
FHD:1920×1080 48/50/60p @65Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD:1280×720 48/50/60p @35Mbps
HD:1280×720 120p @60Mbps

H.264
C4K:4096×2160 24/25/30/48/50/60p @100Mbps
4K:3840×2160 24/25/30/48/50/60p @100Mbps
2.7K:2720×1530 24/25/30p @80Mbps
2.7K:2720×1530 48/50/60p @100Mbps
FHD:1920×1080 24/25/30p @60Mbps
FHD:1920×1080 48/50/60 @80Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @30Mbps
HD:1280×720 48/50/60p @45Mbps
HD:1280×720 120p @80Mbps

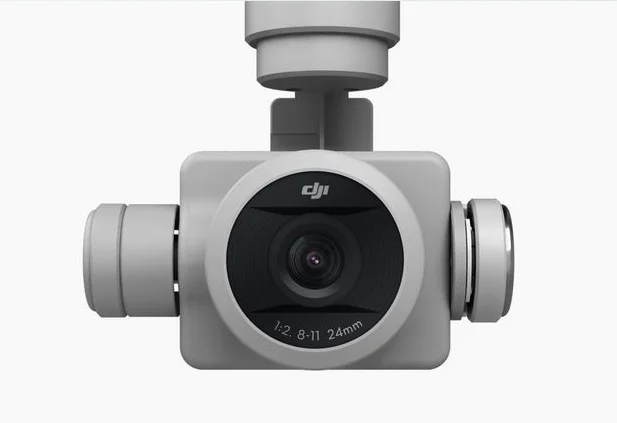

1-inch 20MP Sensor

The onboard camera has been redesigned to use a 1-inch 20-megapixel CMOS sensor. A custom engineered lens made up of eight elements is arranged in seven groups, it is the first DJI camera to use a mechanical shutter, eliminating rolling shutter distortion which can occur when taking images of fast moving subjects or when flying at high speed. In effect, it is as powerful as many traditional ground cameras. More powerful video processing supports H.264 4K videos at 60fps or H.265 4K at 30fps, both with a 100Mbps bitrate. Advanced sensors and processors ensure everything is captured with more image detail and the image data needed for advanced post-production.

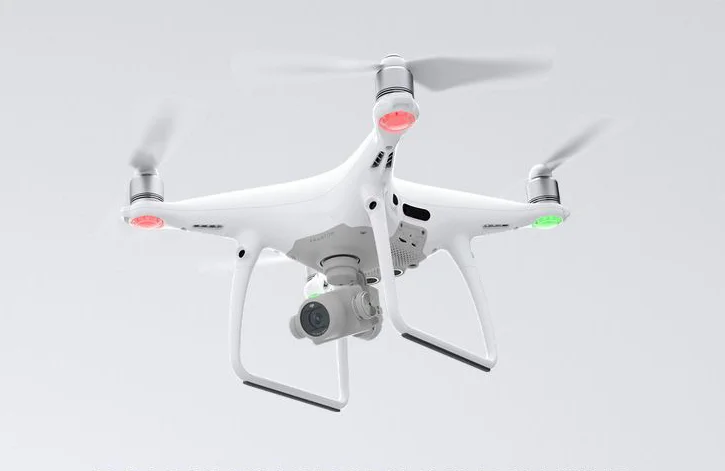

5-Direction of Obstacle Sensing

FlightAutonomy is expanded with an additional set of high-resolution stereo vision sensors placed at the rear in addition to the pair placed at the front as well as infrared sensing systems placed on the left and right sides. This network creates a total of 5-direction of obstacle sensing and 4-direction of obstacle avoidance, protecting the Phantom 4 Pro from more obstacles and giving filmmakers the confidence to capture more complex images.
